file:: Computer_Organization_and_Design_1681729306797_0.pdf file-path:: ../../../../assets/Computer_Organization_and_Design_1681729306797_0.pdf

  • Computer Abstractions and Technology

    ls-type:: annotation hl-page:: 25 hl-color:: yellow id:: 643d2848-6edf-4c05-92c7-4a7de1b9cd22
  • Classes of Computing Applications and Their Characteristics ls-type:: annotation hl-page:: 28 hl-color:: yellow id:: 643e2b9c-0bc2-4b02-b2b1-33e25539d5b9
  • Below Your Program ls-type:: annotation hl-page:: 36 hl-color:: yellow id:: 643ea1cf-af0e-45ba-97b3-376fd21ee1e3 collapsed:: true
    • From a High-Level Language to the Language of Hardware ls-type:: annotation hl-page:: 37 hl-color:: yellow id:: 643ea1d7-cd7d-4e81-8d6f-c268aab04f68
  • Under the Covers ls-type:: annotation hl-page:: 39 hl-color:: yellow id:: 643ea295-e170-403a-a43d-71777bb41d9b collapsed:: true
    • The five classic components of a computer are input, output, memory, datapath, and control ls-type:: annotation hl-page:: 40 hl-color:: yellow id:: 643ea2f7-1fa7-4c12-ad2d-34a90d6968b7
    • liquid crystal displays (LCDs) hl-page:: 41 ls-type:: annotation id:: 643ea91c-7643-4563-9341-f85096313a3b hl-color:: yellow
      • The LCD is not the source of light but instead controls the transmission of light. There is a background light source and the LCD has many rods which bend light to make it pass through. When applied with a current, the rod no more bends light thus controlling the pixel.
      • an active matrix that has a tiny transistor switch at each pixel to precisely control current and make sharper images ls-type:: annotation hl-page:: 41 hl-color:: yellow id:: 643ead73-e1a6-4f10-82c5-2760a4ce839f
    • instruction set architecture hl-page:: 45 ls-type:: annotation id:: 643eb029-9fe9-4013-a4a2-1365e195333b hl-color:: yellow
      • interface between the hardware and low-level software, distinguish architecture from implementation
  • Technologies for Building Processors and Memory ls-type:: annotation hl-page:: 47 hl-color:: yellow id:: 643eb311-6b10-4fa3-9aa3-dfd5a59acf2c collapsed:: true
    • Semiconductor, silicon: add materials to silicon that allow tiny areas to transform into one of three devices: Excellent conductor, Excellent insulator and Transistor (conduct/insulate at some conditions) hl-page:: 48 ls-type:: annotation id:: 643eb66d-0294-46ab-a182-20021b2495c5 hl-color:: yellow
    • Silicon ingot sliced into Blank wafers, processed into Patterned wafers, and then Tested wafer, diced into Tested dies, bonded to package, finally Tested packaged dies
    • die: Rectangular sections cut from a wafer (actually chip)
    • yield: Percentage of good dies from the total dies on the wafer
  • Performance ls-type:: annotation hl-page:: 51 hl-color:: yellow id:: 643ec3be-027e-48b5-90e0-cd4a5e901691 collapsed:: true
    • response/execution time: time between the start and completion of a task hl-page:: 52 ls-type:: annotation id:: 643fb234-d566-4913-a03b-c574e6a623c4 hl-color:: yellow
      • \text{Performance}_X = \frac{1}{\text{Execution time}_X}
      • Relative Performance: A is ==n times as fast as== B, which means the same program runs for 1/n time on A of that on B hl-page:: 54 ls-type:: annotation id:: 643fe045-80bb-4c47-b601-3fdc9175581d hl-color:: yellow
    • throughput: the total amount of work done in a given time hl-page:: 53 ls-type:: annotation id:: 643fb242-9401-42fa-bddc-d93e571b6e99 hl-color:: yellow
    • Measuring Performance ls-type:: annotation hl-page:: 55 hl-color:: yellow id:: 6440d1fd-a2c1-4d4c-a493-3b5c7d91448e
      • Elapsed time: total time to complete a task, including RAM access, IO and other overhead.
      • CPU time: time that CPU spends on computing for this task and not includes IO or waiting for schedule
        • user CPU time
        • system CPU time: time that OS performing tasks on behalf of the program (syscall?)
    • CPU Performance and Its Factors ls-type:: annotation hl-page:: 56 hl-color:: yellow id:: 6440d4c6-9dc2-4712-9d25-6386325581e5
      • clock cycles: discrete time intervals
        • clock period: length of a clock cycle
        • clock rate: inverse of the clock period
      • For a specific program, CPU time = CPU clock cycles \times Clock cycle time = CPU clock cycles \div Clock rate
    • Instruction Performance ls-type:: annotation hl-page:: 58 hl-color:: yellow id:: 6440d70f-cde0-41ca-af1b-82d5a777a7a8
      • CPU clock cycles = Instruction count \times CPI
      • CPI (clock Cycles Per Instruction): average number of cycles each instruction takes to execute (for one program)
        • compare two different implementations of the same ISA
    • The Classic CPU Performance Equation ls-type:: annotation hl-page:: 59 hl-color:: yellow id:: 6440d99c-e080-4352-8c2d-7d35e897a2ee
      • CPU time = Instruction count \times CPI \div Clock rate
      • The formulas separates 3 key factors affecting the performance
      • The only complete and reliable measure of computer performance is time. hl-page:: 61 ls-type:: annotation id:: 6440dc59-a80f-4185-9692-8e4122cad4b4 hl-color:: yellow
      • CPI depends on a wide variety of design details in the computer hl-page:: 61 ls-type:: annotation id:: 6440dcd2-ae75-4a59-a2c5-aff6e3bf7953 hl-color:: yellow
  • The Power Wall ls-type:: annotation hl-page:: 63 hl-color:: yellow id:: 6440df39-4ac7-4efc-b59a-64db6354ca0f collapsed:: true
    • dynamic energy: The energy consumed when transistors switch states, primary source of energy consumption for CMOS.
    • The energy of a single transition: \text{Energy} \propto \frac12 \times \text{Capacitive load} \times \text{Voltage}^2
    • The power required per transistor: \text{Power} \propto \frac12 \times \text{Capacitive load} \times \text{Voltage}^2 \times \text{Frequency switched}
      • Frequency switched is a function of the clock rate
      • Capacitive load is a function of fanout (number of transistors connected to an output) and the technology (capacitance of wires and transistors).
    • Main way to reduce power is to lower the voltage.
      • There is problem with low voltage: this makes the capacitor leakage increase. (static energy)
  • The Sea Change: The Switch from Uniprocessors to Multiprocessors ls-type:: annotation hl-page:: 66 hl-color:: yellow id:: 6440e9ca-16a4-48ed-9648-adafb74ce097 collapsed:: true
    • This section is about the difficulty of parallel programming and relative materials.
  • Fallacies and Pitfalls ls-type:: annotation hl-page:: 72 hl-color:: yellow id:: 6440ea56-fdd5-426f-9a76-d5b5a7465c55 collapsed:: true
    • Amdahl's Law: $\text{Execution time after improvement} = \frac{\text{Execution time affected by improvement} }{\text{Amount of improvement}} + \text{Execution time unaffected}$ hl-page:: 72 ls-type:: annotation id:: 6441179d-ae59-49b4-8903-874cb5b7c9cd hl-color:: yellow
      • Thus, we CANNOT expect ==improvement of one aspect== of a computer to ==increase overall performance by an amount proportional== to the size of improvement.
    • Computers at low utilization don't necessarily use little power, or in other words, power consumption is not proportional to the system's load. hl-page:: 73 ls-type:: annotation id:: 6441212c-596a-463c-a47a-04478b16268b hl-color:: yellow
    • MIPS (million instructions per second) = $\frac{\text{Instruction count}}{\text{Execution time} \times 10^6} = \frac{\text{Clock rate}}{\text{CPI} \times 10^6}$ hl-page:: 74 ls-type:: annotation id:: 64412369-dd7a-4a26-9979-be7179f38df6 hl-color:: yellow
      • Problem 1: it doesn't take into account the Instruction count, or the capability of each instruction. We should not compare computers with different ISAs.
      • Problem 2: MIPS varies between programs even on the same computer.
      • Problem 3: MIPS can vary independently from performance.
  • Word List 1 collapsed:: true
    • omnipresent 无所不在的 ubiquitous hl-page:: 27 ls-type:: annotation id:: 643e2b82-f5a5-411e-9571-d494858c175a hl-color:: green
    • credo 信条，教义 ls-type:: annotation hl-page:: 30 hl-color:: green id:: 643e473a-2f03-419b-ad3a-8309c33dff15
    • unraveling 解开；阐明； hl-page:: 31 ls-type:: annotation id:: 643e47b3-cc6c-4fd1-83a9-0510b16a5e9c hl-color:: green
    • acronyms 首字母缩略词 ls-type:: annotation hl-page:: 32 hl-color:: green id:: 643e485f-8de8-41bf-86ac-812ba202f4c8
    • leverage 影响力；杠杆作用 hl-page:: 33 ls-type:: annotation id:: 643e4871-3ebb-4578-9227-b40a534adeac hl-color:: green
    • intrinsic 固有的, 内在的, 本质的 ls-type:: annotation hl-page:: 33 hl-color:: green id:: 643e4882-a5ea-4bff-9b5f-17f585313142
    • weave 编织；杜撰 hl-page:: 34 ls-type:: annotation id:: 643e492d-5e63-4b9b-93f7-4f44bf50158e hl-color:: green
    • rod 杆；竿；棒 ls-type:: annotation hl-page:: 41 hl-color:: green id:: 643ea931-ff7e-4bd7-96d1-b7eab4dcc563
    • helix n. 螺旋 hl-page:: 41 ls-type:: annotation id:: 643ea93a-fa50-486a-b74a-d96f2a4df9aa hl-color:: green
    • raster 光栅 ls-type:: annotation hl-page:: 41 hl-color:: green id:: 643ea8f8-7e5f-42e3-a04a-01cd91f25d13
    • brawn 体力；发达的肌肉 ls-type:: annotation hl-page:: 42 hl-color:: green id:: 643eaede-f413-4717-9136-e28363909bb3
    • quadruple 四倍的；四重的； hl-page:: 48 ls-type:: annotation id:: 643eb37e-2927-4100-b8b3-c76bbe5450f4 hl-color:: green
    • slam 砰地关上(门或窗)；抨击 hl-page:: 65 ls-type:: annotation id:: 6440e306-7625-4883-b3f0-fbdca42d92e3 hl-color:: green
    • faucet 水龙头 ls-type:: annotation hl-page:: 65 hl-color:: green id:: 6440e5e4-e02f-43e3-9311-64f8b6d67f75
    • unwieldy ls-type:: annotation hl-page:: 65 hl-color:: green id:: 6440e73c-8061-47b2-bc37-522db24f1707
    • startling ls-type:: annotation hl-page:: 66 hl-color:: green id:: 6440e8c9-0024-4751-8233-43e8cea16699
    • stiffer ls-type:: annotation hl-page:: 68 hl-color:: green id:: 6440e99d-0c7d-4acb-9ba7-9172e1d383d8
    • ensnared ls-type:: annotation hl-page:: 72 hl-color:: green id:: 6440ec21-aef2-4494-8b50-d16a83c0d9bb
    • corollary ls-type:: annotation hl-page:: 72 hl-color:: green id:: 6441170f-b51b-453a-b612-0b71b2b6032d
    • demoralize ls-type:: annotation hl-page:: 72 hl-color:: green id:: 64411718-be78-469d-9b83-0dfd9c83338b
    • plague ls-type:: annotation hl-page:: 72 hl-color:: green id:: 64411720-4c6a-49ce-8a72-4aa19e7b8482
    • preclude ls-type:: annotation hl-page:: 75 hl-color:: green id:: 6440ebb6-a98d-465f-8345-3da49486f653
    • constituent ls-type:: annotation hl-page:: 75 hl-color:: green id:: 6440ebc6-59b1-4b7e-ae67-75559989873b
    • impeachable ls-type:: annotation hl-page:: 75 hl-color:: green id:: 6440ebd7-8c0c-4a18-9d86-bd95714f58ac

  • Instructions: Language of the Computer

    ls-type:: annotation hl-page:: 83 hl-color:: yellow id:: 64412821-6b54-47a0-9317-a4b042989fdf
  • Operations of the Computer Hardware ls-type:: annotation hl-page:: 86 hl-color:: yellow id:: 64412ca1-c9b5-4d6b-ba19-d353992dd2f1 collapsed:: true
    • Three-operand arithmetic instructions
  • Operands of the Computer Hardware ls-type:: annotation hl-page:: 89 hl-color:: yellow id:: 64412cc0-59a8-4a38-9094-1a7bd916a41f collapsed:: true
    • Registers, where operands of arithmetic instructions must reside
      • Register size is a word (32 bit)
      • 32 registers in MIPS.
        • fewer registers to keep clock cycles fast (though 31 regs may not be faster then 32 regs)
        • instruction format (5-bit field for register number)
    • data transfer instructions ls-type:: annotation hl-page:: 91 hl-color:: yellow id:: 64412fc0-7ad1-4c8a-9c03-c198e741605b
      • memory to register or inverse
      • alignment restriction: words must start at addresses that are multiples of 4. As a result, there is some restrictions on the address for lw/sw hl-page:: 92 ls-type:: annotation id:: 6441425c-134d-449d-ae39-4db48a67054c hl-color:: yellow
      • memory is addressed by byte, remember this especially when dealing with array indices because the type of array elements decides the offset.
      • MIPS is in the big-endian camp (though the textbook says so, the latest MIPS32 by default is little endian) hl-page:: 93 ls-type:: annotation id:: 64414940-7d06-4339-af0b-974b1b34dbc5 hl-color:: yellow
    • Constant or Immediate Operands ls-type:: annotation hl-page:: 95 hl-color:: yellow id:: 64414a51-2d38-48ff-b0c0-bc53f9c5fadb
      • Constant operands occur frequently, and by ==including constants inside arithmetic instructions==, operations are much ==faster== and use ==less energy== than if constants were ==loaded from memory==. hl-page:: 95 ls-type:: annotation id:: 64414af2-05ea-4a88-baf6-a19462b4c3a9 hl-color:: yellow
      • Since MIPS supports ==negative constants==, there is no need for subtract immediate in MIPS. ls-type:: annotation hl-page:: 96 hl-color:: yellow id:: 64414b4e-cf31-4e7f-8320-2f1bbcbf9b32
  • Signed and Unsigned Numbers ls-type:: annotation hl-page:: 96 hl-color:: yellow id:: 64414b5f-de73-4bbc-812d-8ebd0f082ea0 collapsed:: true
    • binary digits hl-page:: 96 ls-type:: annotation id:: 64414bb1-c764-493b-b555-4e241a31f255 hl-color:: yellow
      • value of ith digit: d \times \text{Base}^i
      • LSB and MSB
      • Numbers have infinite number of digits, binary bit patterns are simply representatives of numbers. Thus, there are various ways of handling overflow. hl-page:: 97 ls-type:: annotation id:: 64414c34-4dc9-4127-9938-faf0374b6c29 hl-color:: yellow
    • Signed numbers
      • sign and magnitude: add a separate sign bit. Problems with this approach, need an extra step to set the sign during calculation, negative and positive zero hl-page:: 98 ls-type:: annotation id:: 64414d4d-71a4-44df-9475-d710bfee40d3 hl-color:: yellow
      • two's compliment
        • the value of this form can be written as (d_{31} \cdot -2^{31}) + d_{30} \cdot 2^{30} + \dots, note the first $-2^{31}$ id:: 64414f1b-142c-4301-a5a2-6dc0ad3b102b
      • one's compliment: negate operation is to simply invert each bit
    • sign extension: copy the sign repeatedly to fill the rest of the register when loading from memory hl-page:: 99 ls-type:: annotation id:: 64414fbb-4773-4332-bf21-f533847d0bde hl-color:: yellow
      • This trick works because positive 2's complement numbers really have an infinite number of 0s on the left and negative 2's complement numbers have an infinite number of 1s. The binary bit pattern representing a number hides leading bits to fit the width of the hardware; sign extension simply restores some of them. hl-page:: 101 ls-type:: annotation id:: 64415085-a9e5-4193-a5d1-9c90f5d63ea8 hl-color:: yellow
  • Representing Instructions in the Computer ls-type:: annotation hl-page:: 103 hl-color:: yellow id:: 64414d2f-3ea8-45a6-9a7a-b84f74a554cf collapsed:: true
    • MIPS Fields ls-type:: annotation hl-page:: 105 hl-color:: yellow id:: 64415179-3df0-431e-9e53-8608796931dd
      • In order to keep the instructions regular (aligned by word), MIPS has irregular layouts for different types of instruct.
      • R-type: op | rs | rt | rd | shamt | funct
      • I-type: op | rs | rt | constant/address
        • The 16-bit address means a lw can only load from a region of \pm 2^{15} bytes of the base register.
        • here rt serves as the destination register
  • Logical Operations ls-type:: annotation hl-page:: 110 hl-color:: yellow id:: 64415118-595d-4125-b641-333d82a58006 collapsed:: true
    • sll and srl, use the shamt (shift amount) field
    • andi ori extend their 16-bit constant field by filling 0s
    • there is no exact instruction for bitwise not, but a nor (not or, a NOR b = NOT(a OR b)) instruction (perhaps in order to keep the 3-operand format)
  • Instructions for Making Decisions ls-type:: annotation hl-page:: 113 hl-color:: yellow id:: 644154b4-a07e-46fd-aa88-178297b61434 collapsed:: true
    • conditional branches: bne and beq hl-page:: 113 ls-type:: annotation id:: 644156a7-b2b5-4010-97e3-a432f077cd33 hl-color:: yellow
    • Loops ls-type:: annotation hl-page:: 115 hl-color:: yellow id:: 64415778-92af-4d30-b3b4-0b3dddd397f4
    • slt and slti: if rs < rt/rs < imm then rd=1 else rd=0
      • MIPS assemblers use the combination slt/slti and beq/bne and $zero to create all relative conditions
      • sltu/stliu signed and unsigned comparison are different, thus an unsigned version is provided
    • Case/Switch Statement: jump address table and jr instruction (the runtime destination address is stored in register) hl-page:: 118 ls-type:: annotation id:: 644159a7-3b96-4924-8260-0cb300307c86 hl-color:: yellow
  • Supporting Procedures in Computer Hardware ls-type:: annotation hl-page:: 119 hl-color:: yellow id:: 644156f5-e485-4140-be11-6ef87a585383 collapsed:: true
    • jal jumps to an address and simultaneously saves the address of the following instruction in $ra
    • jr jumps to the address specified in a register
    • Calling convention for register:
      • $a0-$a3: four argument registers in which to pass parameters
      • $v0–$v1: two value registers in which to return values
      • $ra: one return address register to return to the point of origin
      • $t0–$t9: temporary registers that are not preserved by the callee on a procedure call id:: 644163d9-8d4b-43e8-acec-57a835c4ce48
      • $s0–$s7: saved registers that must be preserved on a procedure call (if used, callee saves and restores them)
      • $sp: stack pointer to the most recently allocated address, push substract from $sp and pop add to $sp
      • $fp: frame pointer to the first word of the frame of a procedure
      • $gp: pointer to global static data
    • FIGURE 2.11 What is and what is not preserved across a procedure call. ls-type:: annotation hl-page:: 125 hl-color:: yellow id:: 64416615-2966-4adb-a524-845337e588d3
    • Allocating Space for New Data on the Stack ls-type:: annotation hl-page:: 126 hl-color:: yellow id:: 6441667f-2639-458b-91fd-8bf6b5a2c6ae
      • stack is also used to store variables that are local to the procedure but do not fit in registers
      • procedure frame or activation record ls-type:: annotation hl-page:: 126 hl-color:: yellow id:: 64416688-3f6e-444e-b265-3e4a36ec51b8
      • a frame pointer offers a stable base register within a procedure for local memory-references, in that stack pointer changes during the procedure
  • ASCII and String hl-page:: 129 ls-type:: annotation id:: 644167c0-1ac2-42df-b01d-4fff03a393e7 hl-color:: yellow collapsed:: true
    • lb/lbu and sb load/store the right most byte, lh/lhu and sh load/store the lower half word
    • Some notes about how to organize a string
      • character size
      • length or end mark
  • MIPS Addressing for 32-bit Immediates and Addresses ls-type:: annotation hl-page:: 134 hl-color:: yellow id:: 6441f1a7-4442-466f-9edc-776f6e0e6ecb collapsed:: true
    • 32-Bit Immediate Operands: lui loads a half word to the upper 16 bits of a register, and then a ori sets the lower 16 bits, thus loading a 32-bit immediate hl-page:: 135 ls-type:: annotation id:: 6441fb16-91e4-42d8-94bf-5718dd9fc91b hl-color:: yellow
    • Addressing in Branches and Jumps ls-type:: annotation hl-page:: 136 hl-color:: yellow id:: 64427722-3a05-43f1-b00e-7dcc30cc74ff
      • J-type instruction: op | address (26 bits)
      • Since MIPS instructions are all 4-byte aligned, the unit of the address in PC-relative addressing is actually word. For example, 16-bit address in branch instruction actually represents an 18-bit address.
    • MIPS Addressing Mode ls-type:: annotation hl-page:: 139 hl-color:: yellow id:: 64427a40-988f-4430-aaa5-84d3926c6234
        1. Immediate addressing: the operand is a constant within the instruction itself (e.g., addi $rd, $rs, 4)
        2. Register addressing: the operand is a register (e.g., add $rd, $rs, $rt)
        3. Base (displacement) addressing: the operand is at the memory location whose address is the sum of a register and a constant in the instruction (e.g., lw $rd, 4($rs))
        4. PC-relative addressing: the branch address is the sum of the PC and a constant in the instruction (e.g., beq $rs, $rt, #addr)
        5. Pseudo-direct addressing: the jump address is the 26 bits of the instruction concatenated with the upper bits of the PC (e.g., j #addr)
  • Parallelism and Instructions: Synchronization ls-type:: annotation hl-page:: 144 hl-color:: yellow id:: 644284b0-dd95-46e5-829f-4509200e5f8d collapsed:: true
    • a set of hardware primitives with the ability to atomically read and modify a memory location hl-page:: 144 ls-type:: annotation id:: 64428547-07fb-49e2-9e3f-a7ac95b7e8e0 hl-color:: yellow
    • atomic exchange: interchange a value in a register for a value in memory
      • Introduces some challenges in the processor design
      • while (xchg(&lock, 1) == 1) ;
    • MIPS ll/sc: a pair of instructions in which the second instruction returns a value showing whether the pair of instructions as if one atomic instruction.
      • while (ll(&lock) == 1 && sc(&lock, 1)) ;
      • sc will fail after either another attempted store to the lled address or ==any exception==. It is possible to create deadlock where sc can never complete due to repeated page faults.
  • Translating and Starting a Program ls-type:: annotation hl-page:: 146 hl-color:: yellow id:: 64428b6e-1dba-4bd4-ab91-d18ae9cb9cf6 collapsed:: true
    • Assembler ls-type:: annotation hl-page:: 147 hl-color:: yellow id:: 64428b72-2291-4380-a2ad-dc5cdc82315e
      • pseudoinstructions: assembler translates these instructions into equivalent machine instructions. Register $at is reserved for such translations. hl-page:: 147 ls-type:: annotation id:: 64428b7b-0678-4fc3-a105-71fdc6185144 hl-color:: yellow
        • Example 1: move $t0, $t1 -> add $t0, $t1, $zero
        • Example 2: blt $t0, $t1, LABEL1 -> slt $at, $t0, $t1; bne $at, $zero, LABEL1
      • The assembler turns the assembly language program into an object file, which is a combination of ==machine language instructions==, ==data==, and information needed to place instructions properly in memory (==symbol table==, ==relocation information==). hl-page:: 148 ls-type:: annotation id:: 64428ce2-cd44-4d6d-a311-dc7aa3f656ab hl-color:: yellow
      • The object file for UNIX systems typically contains six distinct pieces: object file header, text segment, static data segment, relocation information, symbol table, and debug information hl-page:: 148 ls-type:: annotation id:: 64428f56-bd42-4cc4-a4dd-bf8b05e76fc3 hl-color:: yellow
    • Linker ls-type:: annotation hl-page:: 149 hl-color:: yellow id:: 64428f9a-632e-4bdb-80d5-56febc2bb977
      • Re-compile the whole program at each change to a single procedure is huge waste, so compile/assemble independently and finally link them together.
      • 3 steps for the linker:
        • hl-page:: 149 ls-type:: annotation id:: 6442909f-b0b5-4706-8454-f89466e3ff7e hl-color:: yellow
          1. Place code and data modules symbolically in memory.
          2. Determine the addresses of data and instruction ==labels==.
          3. Patch both the internal and external ==references==.
      • Example Problem: Linking Object Files hl-page:: 150 ls-type:: annotation id:: 6442957a-fb16-4069-8e74-d470c01ba18c hl-color:: yellow
    • Dynamically Linked Libraries ls-type:: annotation hl-page:: 152 hl-color:: yellow id:: 644292fb-c10c-43f6-8152-941b009e14c2
      • Library routines are not linked and loaded until the program is run. Keep extra info on the location and name of non-local procedures. hl-page:: 152 ls-type:: annotation id:: 644295c2-95e3-4da8-ba89-5470c9049fce hl-color:: yellow
      • The program loader uses the extra information to find the proper libraries and ==update all external references==.
      • Lazy procedure linkage: Instead of linking all library routines that might be called, link only those are actually called at runtime.
        • Assume there is a table of entries for external routines, at static linkage stage, set them all to a dummy address of a dynamic linker/loader. At runtime, the program jumps to this dummy address, and executes this linker/loader which finds the desired routine, remaps it and changes the address in the indirect jump location. Next time this routine is called, this indirect jump will go to the desired routine.
  • A C Sort Example to Put It All Together ls-type:: annotation hl-page:: 155 hl-color:: yellow id:: 6442a0c7-e518-46f3-979d-9c104093343b collapsed:: true
    • Skipped, since it is easy
  • Arrays versus Pointers ls-type:: annotation hl-page:: 164 hl-color:: yellow id:: 6442a0b8-5961-423d-bbcf-96cf55fd55cf collapsed:: true
    • An example piece of code which iterate over an array by both pointer and index
    • Skipped, since it is easy
  • Advanced Material: Compiling C and Interpreting Java ls-type:: annotation hl-page:: 168 hl-color:: yellow id:: 6442a09e-3edb-4593-833a-626506177900 collapsed:: true
    • Skipped, since it is compiler's job (Control Flow Graph???)
  • Real Stuff: ARMv7 (32-bit) Instructions ls-type:: annotation hl-page:: 194 hl-color:: yellow id:: 6442a15d-dfe5-49b0-9b78-5f109e674e2f
  • Real Stuff: x86 Instructions ls-type:: annotation hl-page:: 198 hl-color:: yellow id:: 6442a152-baff-4ccb-aee2-2f548e14903e
  • Real Stuff: ARMv8 (64-bit) Instructions ls-type:: annotation hl-page:: 207 hl-color:: yellow id:: 6442a1ad-0491-48d7-84b7-7feba159d9dd collapsed:: true
    • The philosophy of ARMv8 is much closer to MIPS than ARMv7. For example, the $zero, the beq/bne instead of the condition bit
  • Design Principles collapsed:: true
    • Design Principle 1: Simplicity favors regularity. ls-type:: annotation hl-page:: 88 hl-color:: yellow id:: 644152b5-ee31-4da9-86e4-33d7472f04c3
    • Design Principle 2: Smaller is faster. ls-type:: annotation hl-page:: 90 hl-color:: yellow id:: 644152aa-00c2-4542-abaf-7048e6d37904
    • Design Principle 3: Good design demands good compromises. ls-type:: annotation hl-page:: 106 hl-color:: yellow id:: 64415292-0727-4366-8717-ecca11267baf
  • Word List 2 collapsed:: true
    • palatable 可口的；味美的 ls-type:: annotation hl-page:: 86 hl-color:: green id:: 64412a38-84ed-4f97-b83d-911772eb7158
    • rationale 基本原理；根本原因 reason hl-page:: 86 ls-type:: annotation id:: 64412bbd-513c-4e00-8576-7ef88749e552 hl-color:: green
    • moot 无考虑意义的 ls-type:: annotation hl-page:: 99 hl-color:: green id:: 64414e6e-e6f7-4d05-865f-a18455c509ba
    • dichotomy 二分法；两面性；(the separation between two opposite groups) hl-page:: 117 ls-type:: annotation id:: 6441591a-02ed-4556-8fd7-5fdb310063e7 hl-color:: green
    • spill (使)洒出,泼出,溢出: ls-type:: annotation hl-page:: 121 hl-color:: green id:: 64416330-597c-4245-8d53-a5dc643ea05f
    • wax and wane 月亮盈/亏 hl-page:: 127 ls-type:: annotation id:: 64416671-9318-4296-9588-c0421c02cdd2 hl-color:: green
    • interpose 将…置于(二者)之间；插话 hl-page:: 144 ls-type:: annotation id:: 64428502-8d37-4bad-a24f-6edfa9796740 hl-color:: green
    • succinct 简明的；言简意赅的 concise hl-page:: 148 ls-type:: annotation id:: 64428c72-5e4f-4f33-a1ac-cadd4610f04a hl-color:: green
    • stitch 缝 ls-type:: annotation hl-page:: 149 hl-color:: green id:: 6442903b-ae86-4608-8d83-60771782b088
    • anatomy 解剖学 ls-type:: annotation hl-page:: 168 hl-color:: green id:: 64429b75-4433-4e39-8085-ad2e791dbf33
    • headstart 领先 ls-type:: annotation hl-page:: 207 hl-color:: green id:: 6442a2ee-8c2e-4ed2-a67f-23db50972a71
    • toil (长时间)苦干,辛勤劳作 hl-page:: 209 ls-type:: annotation id:: 6442a05d-69ba-4161-9ffa-bb305a17fcf1 hl-color:: green

  • Arithmetic for Computers

    hl-page:: 225 ls-type:: annotation id:: 6442a5d0-e073-4cd4-a6c6-1bb664ee952a hl-color:: yellow
  • Addition and Subtraction ls-type:: annotation hl-page:: 227 hl-color:: yellow id:: 64433f1c-c023-429e-88d0-46cad778477c collapsed:: true
    • Addition is to add digits bit by bit from right to left with carries passed to the left digit.
    • Subtraction uses addition, negate the second operand before adding.
    • Overflow collapsed:: true
      • The result cannot be represented with the hardware.
      • ==No overflow== can occur when ==adding operands with different signs== or ==subtracting operands with the same sign==.
      • Overflow occurs when adding 2 positives and the sum is negative, or vice versa; and when subtracting a negative from a positive and get a negative, or vice versa.
        • For a software detection, you can use xor to detect sign difference.
        • For overflow (carry) of unsigned numbers, though often ignored, use the inequation (\text{MAXUINT})2^{32}-1 \lt A + B \rightarrow 2^{32}-1 -A \lt B \rightarrow \overline{A} \lt B
        • 这里补充一下408的内容，说了3种判断方法（不过本质上一样的），设 A + B = S
          • 一位符号位，就是英文教材里面的方法，适合软件判断 （因为你没有进位信号也没有双符号位）\text{OF} = A_sB_s\overline{S_s}+\overline{A_s}\overline{B_s}S_s
          • 两位符号位，无非就是给MSB前面添2位罢了。计算结果的双符号位 S_{s1}S_{s2} 有4种组合，分别表示无溢出和正负溢出，判断为 \text{OF} = S_{s1}\oplus S_{s2}
          • 符号位进位和最高位进位，\text{OF} = C_{n} \oplus C_{n-1}
      • In MIPS, add/addi/sub causes exceptions on overflow; while addu/addiu/subu does not cause exceptions on overflow.
        • Since C ignores overflow, it always uses *u instructions.
      • saturating operation: When overflow, set the result to the MAX/MIN value rather than a modulo to 2^32 hl-page:: 230 ls-type:: annotation id:: 644347f7-9833-4208-99f7-655f94b5a7b5 hl-color:: yellow
  • Multiplication ls-type:: annotation hl-page:: 232 hl-color:: yellow id:: 64434f2d-d63b-4840-96da-918f7a04cb97 collapsed:: true
    • Names of the operands: product = multiplicand * multiplier
    • Observation
      • n-bit multiplicand and m-bit multiplier result in a (m+n)-bit product (overflow)
      • The manual multiplication method in essence is a ==shift-and-add== process.
    • Sequential Version of the Multiplication Algorithm and Hardware ls-type:: annotation hl-page:: 233 hl-color:: yellow id:: 64435253-b5bf-4832-ad91-025cede3bafd collapsed:: true

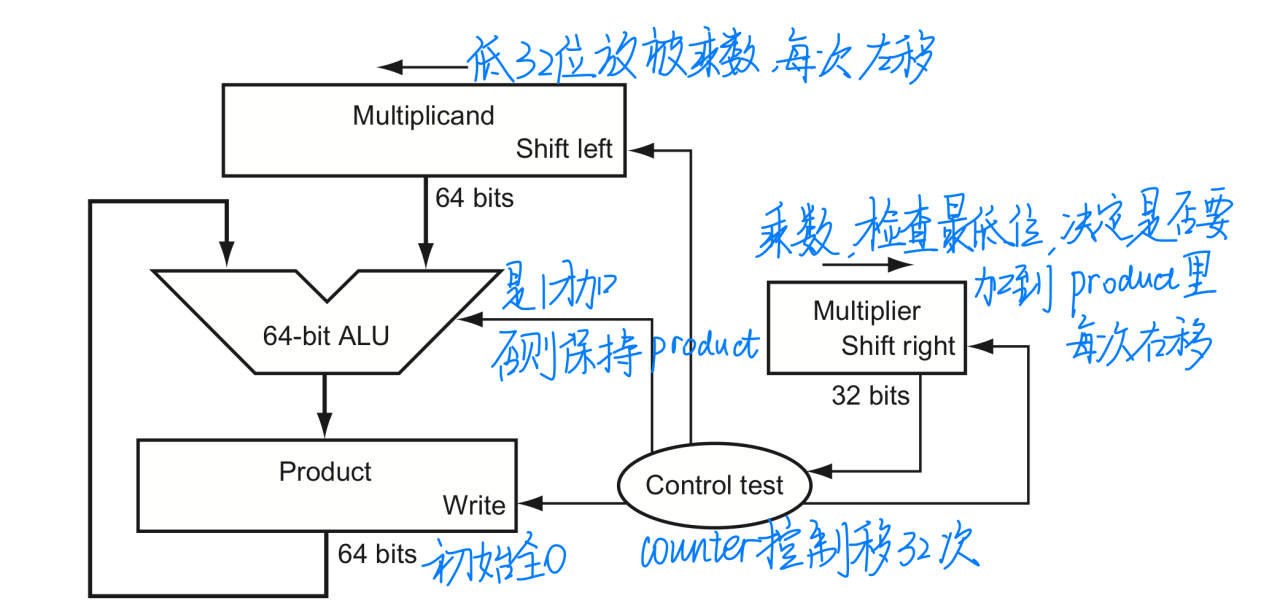

      • Naive version
        • Three registers, namely 64-bit multiplicand, 32-bit multiplier and 64-bit product.
        • image.png{:height 223, :width 449}
        • Pseudo code for the algorithm
          uint64_t multiplicand = A;
uint32_t multiplier = B;
uint64_t product = 0;
for (int i = 0; i < 32; ++ i) {
  if (multiplier & 0x1) product += multiplicand; // 1. test multiplier[0] and add to product
  // else do nothing, or add 0
  multiplicand <<= 1; // left shift multiplicand
  multiplier >>= 1; // right shift multiplier
}
        • Though the textbook says that each iteration takes 3 clock cycles, I think all these can be done in 1 cycle (虽然时序会比较垃圾就是了). The following refined version no doubt needs only 1 cycle each iteration.
      • Refined version
        • one 64-bit register for product which right-shifts once at a tick
        • 31 cycles (the first partial product is already in product register by initialization, so save one addition from the original 32 iterations)
        • image.png
    • Signed Multiplication ls-type:: annotation hl-page:: 236 hl-color:: yellow id:: 64435d8f-d70f-4968-be40-ddbf8ef5a19e
      • The easiest solution is that, first convert all operands to positive and calculate the sign separately; after multiplication, convert the the product to its correct sign.
      • The refined version is ready to deal with signed multiplication by the following 2 steps:
        • Enable sign extension on right shift of product register.
        • Subtract rather than add on the last partial product. This operation originates from ((64414f1b-142c-4301-a5a2-6dc0ad3b102b))
        • Then we can get a 32-bit product in the lower word of the product register.
    • Faster Multiplication ls-type:: annotation hl-page:: 236 hl-color:: yellow id:: 6443dd4d-c534-4911-9e81-3b4b0ef396d9 collapsed:: true
      • A balance between resource and speed

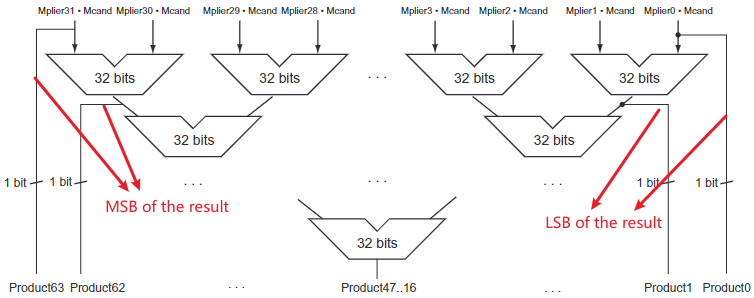

      • FIGURE 3.7 Fast multiplication hardware. hl-page:: 237 ls-type:: annotation id:: 6443e016-d955-4433-9956-46ad682890ae hl-color:: yellow collapsed:: true
        • image.png
        • Only \log_2(32) = 5 times addition.
        • Unroll the loop into a tree-like
      • There are many other ways to implement a multiplier circuit, such as Array Multiplier using Carry-Save Addition, or pipeline it, or booth.
    • Principle of booth algorithm
      • The simplest Radix-2 booth multiplier is based on such an observation (again):

A = A_{\text{n-1}}A_{\text{n-2}}\dots A_{\text{1}}A_{\text{0}}
\\ = - A_{n-1} \times 2^{n-1} + \sum_{i=0}^{n-2} A_{i}\times 2^{i}
\\ = - A_{n-1} \times 2^{n-1} + (2 - 1)\sum_{i=0}^{n-2} A_{i}\times 2^{i}
\\= (A_{n-2}- A_{n-1})\cdot 2^{n-1} + (A_{n-3}- A_{n-2})\cdot2^{n-2} \cdots (A_{1}- A_{0})\cdot2^{1} + (A_{-1}- A_{0})\cdot 2^{0}

        	- When $A_{i-1} = A_{i}$, the result is 0. Thus, Radix-2 Booth Algorithm examines the 2 LSBs and decides which operation to perform (shift (`00/11`) or add (`01`) or subtract (`10`)).
      • Extending to Radix-4, the item looks like this: (A_{2k+1}-2A_{2k}+A_{2k-1})\times 2^{2k}. And we will have a more complicated operation table since the algorithm examines 3 bits.
      • Radix-4 Booth Algorithm halves the number of partial products, thus improving the performance.
  • Division ls-type:: annotation hl-page:: 238 hl-color:: yellow id:: 6443e24f-a691-45aa-809c-2e01aca20e0b collapsed:: true
    • $\text{dividend} = \text{quotient} \times \text{divisor} + \text{remainder}, \text{divisor} \gt \text{remainder}$ collapsed:: true
      • As for signed division, watch out for the remainder. There may be more than one seemingly reasonable pair of (quotient, remainder). One general rule for this is that, remainder has the same sign as the dividend.
    • A Division Algorithm and Hardware (Unsigned) hl-page:: 238 ls-type:: annotation id:: 6443e2eb-9d81-471b-9033-0e325140b4f2 hl-color:: yellow collapsed:: true
      • Naive version
        • image.png
        • Pseudo code
          void div(uint32_t A, uint32_t B) {
  uint64_t Divisor = B << 32;
  uint64_t Remainder = A;
  uint32_t Quotient = 0;
  for (int i = 0; i < 33; ++ i) {
    Remainder = Remainder - Divisor; // 1. try subtract
    if (Remainder >= 0) {
      Quotient = (Quotient | 1) << 1; // 2.a. suffice
    }
    else {
      Quotient = (Quotient | 0) << 1; // 2.b. cannot subtract, restore
      Remainder = Remainder + Divisor;
    }
    Divisor = Divisor >> 1; // 3. next bit
  }
}

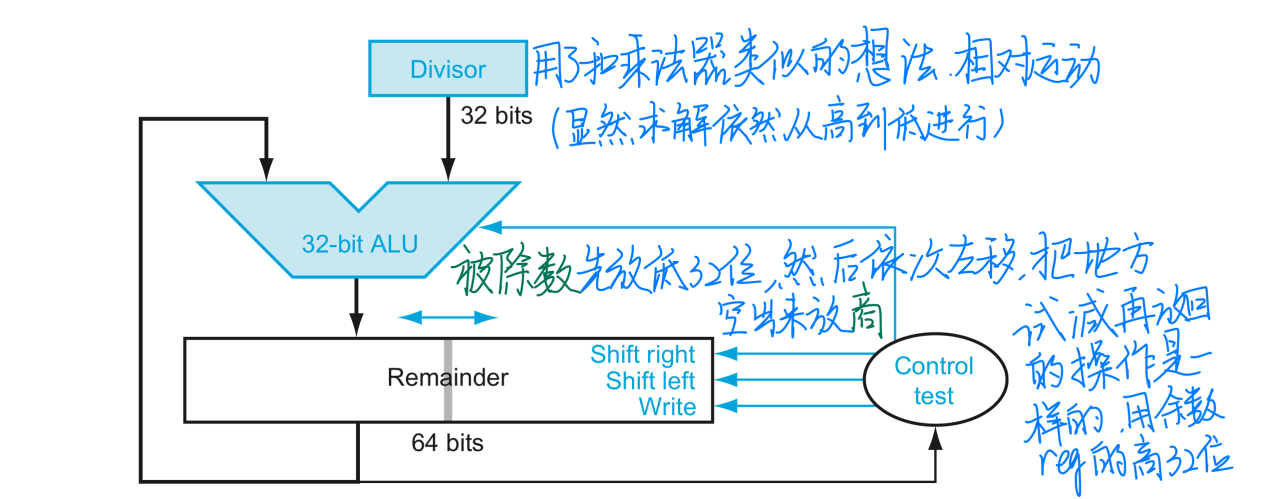

      • Refined version collapsed:: true
        • image.png
        • Use less resource, only a 64-bit register is needed, which is 0 | Dividend at initialization and Remainder | Quotient after 32 cycles (32 left shifts).
        • A working SystemVerilog implement
          module divider(
input logic clk,
input logic rst,
input logic en,
input logic [31:0] operandA,
input logic [31:0] operandB,
output logic operation_valid,
output logic busy,
output logic [63:0] result
); // unsigned divider
parameter COUNT = 6'd32;
logic [5:0] count;
logic [31:0] divisor;
logic [31:0] alu_result;
logic restore;
logic [63:0] remainder;
  always @(posedge clk, negedge rst)
    if (!rst) divisor <= 32'b0;
    else if (en && count == 0) divisor <= operandB;
  always @(posedge clk, negedge rst)
    if (!rst) remainder <= 64'b0;
    else if (en && count == 0) remainder <= {32'b0, operandA};
    else if (busy) begin
      if (restore) remainder <= remainder << 1;
      else remainder <= {alu_result[30:0], remainder[31:0], 1'b1};
    end
  always @(posedge clk, negedge rst)
    if (!rst || !en) count <= 0;
    else if (count == 0) count <= 1;
    else if (count < COUNT) count <= count + 1;
    else count <= 0;
  assign operation_valid = (operandB == 32'b0 && en) ? 1'b0 : 1'b1;
  assign busy = en && count;
  assign alu_result = remainder[63:32] - divisor;
  assign restore = remainder[63:32] < divisor;
  assign result = {alu_result[31:0], remainder[30:0], ~restore};
  // due to implementation issues, the remainder part will be over-shifted in the end
  // here is a workaround
endmodule
      • 无符号除法也可以用加减交替法(Non-restoring Division)，一种简单的改进。国内的计组教材上讲的都是定点小数，如果需要做整数的话，需要把 Divisor 先左移 N 位。好像说，不恢复余数法，其实是 SRT 方法的一种特殊情况来着。感觉还是没怎么搞明白，这东西可以单独开一门课，不过无所谓了，反正题会做就行。
      • 我的评价是，看这个吧。COMPUTER ARITHMETIC : Algorithms and Hardware Designs
      • 补码除法（爱来自408）
        • 加减交替法：符号位和数值位一起参加运算（全部是补码），商符自然形成。
        • 先做一次加减法运算：若 Dividend 和 Divisor 同号，则相减；否则相加。
        • 然后重复N次：若 Remainder 和 Divisor 同号，商上1，左移 Remainder 并减 Divisor；否则 Quotient 上0，左移 Remainder 并加 Divisor
        • 最后一步给 Quotient 恒置1
        • 不过说实在的，我没理解，手动算好像也不对劲，==不知道哪里出了问题==，过天再看看。这东西的设计还挺好玩的。
      • Faster Division ls-type:: annotation hl-page:: 243 hl-color:: yellow id:: 6444043e-8c74-474e-a4f0-b2011ebb9b10
        • Similar to multiplier, there are also many ways to build a divider. However, unlike multiplier, divider cannot use array-adder, since it cannot be known ahead whether the subtraction is available. There is a method based on lookup table and prediction, called SRT division.
  • Floating Point ls-type:: annotation hl-page:: 245 hl-color:: yellow id:: 644410ff-f158-431d-ab11-22f32e63a6da collapsed:: true
    • Normalized number: a number in scientific notation without leading 0s.
    • binary point: the point, but in base 2 hl-page:: 245 ls-type:: annotation id:: 644494f0-4e7e-4356-bf49-5d7f61999a78 hl-color:: yellow
    • floating point normalized form: 1.xxxxxxxx_{\text{two}} \times 2^{yyyy}. Since there is no leading 0s, the only bit to the left of the binary point is 1.
    • Floating-Point Representation ls-type:: annotation hl-page:: 246 hl-color:: yellow id:: 644495bf-6828-4439-a332-f5a9a176adaf
      • A single-precision floating point has 32 bits, 1 | 8 | 23 bit(s) for the 3 components s | exponent | fraction
      • A double-precision floating point has 64 bits, 1 | 11 | 52 bits for the 3 components.
      • General form of floating-point numbers: (-1)^{\text{s}} \times \text{F} \times 2^{\text{E}}
      • overflow: the exponent is too large hl-page:: 247 ls-type:: annotation id:: 6444979f-bc17-4cf6-9a68-0a7098db96b6 hl-color:: yellow
      • underflow: the ==negative== exponent is too large hl-page:: 247 ls-type:: annotation id:: 644497a1-f169-4386-8e44-cf46566f6d47 hl-color:: yellow
      • significant: the 24-bit or 53-bit number comprised of the implicit leading 1 and the fraction.
      • IEEE 754 encoding of floating-point numbers. hl-page:: 248 ls-type:: annotation id:: 6444991d-e3c9-4161-863e-2c65db02a575 hl-color:: yellow
        • Represent 0: Since 0 has no leading 1, a reserved exponent 0 is there to represent the number.
        • Represent Infinity/NaN:Two unusual cases are given another reserved exponent 255/2047, representing infinity (fraction = 0) and NaN (fraction != 0)
        • Biased notation: To simplify the sorting of floating-point numbers, the exponent field is designed to be an unsigned integer. But we also have to represent negative exponents, thus the exponent field is biased by 127/1023. In other words, the real value of the exponent is the exponent field subtract bias.
        • The real value of an IEEE-754 floating-point (==normalized==) number could be expressed as: (-1)^{\text{s}}\times (1+\text{Fraction})\times 2^{\text{Exponent-Bias}}
          • Ranges from \pm 1.00\dots00_{\text{two}}\times 2^{-126} to \pm 1.11\dots11_{\text{two}}\times 2^{+127}
        • de-normalized numbers: The exponent field is 0, but the actual exponent is -126/-1022. And there is no implicit leading 1. This form can represent a number smallest down to $0.00\dots01_{\text{two}} \times 2^{-126} = 1.0_{\text{two}}\times 2^{-149}$ hl-page:: 271 ls-type:: annotation id:: 6444a660-b04c-4dd5-9f03-1df86f5feaf2 hl-color:: yellow collapsed:: true
          • However, this prevents FPUs from getting faster, some architects raise exceptions for de-normalized IEEE-754 (they just don't implement such support)
    • Floating-Point Addition ls-type:: annotation hl-page:: 252 hl-color:: yellow id:: 64449f20-2e2b-4aba-a152-fb5013cee9df
      • FIGURE 3.14 Floating-point addition. ls-type:: annotation hl-page:: 254 hl-color:: yellow id:: 6444a190-55ce-4d72-b776-f65bd79c402e
      • (1) Compare the exponents of the 2 numbers. Shift the smaller number to the right until its exponent would match the larger one
      • (2) Add the significands
      • (3) Normalize the sum, either rsh and exp++ or lsh and exp--
        • Check overflow/underflow
      • (4) Round the significand
        • Check if the result is normalized, in case rounding adds to the MSB. If not, go to (3).
      • FIGURE 3.15 Block diagram of an arithmetic unit dedicated to floating-point addition. ls-type:: annotation hl-page:: 256 hl-color:: yellow id:: 6444a33a-1be3-46cf-88d7-bda594ff889b
    • Floating-Point Multiplication ls-type:: annotation hl-page:: 255 hl-color:: yellow id:: 6444a351-91c2-4d55-b74d-e9b3bf0b1f3f
      • FIGURE 3.16 Floating-point multiplication. ls-type:: annotation hl-page:: 258 hl-color:: yellow id:: 6444a815-7f89-4638-9bc0-a2539cf80a27
      • (1) Add the biased exponents of the 2 numbers (and subtract one bias since it is added twice) to get the new exponent field
      • (2) Multiply the significands
        • Different from addition, ==exponent alignment is no needed==. Directly multiply the significands.
      • (3) Normalize and check over/underflow
      • (4) Round the significand to the appropriate number of bits, and check normalized (or go to (3))
      • (5) Set the sign of the product
    • Floating-Point Instructions in MIPS ls-type:: annotation hl-page:: 260 hl-color:: yellow id:: 6444a4ea-ad13-4a57-a881-cb7cbae7f65f
      • Special instructions: arithmetic(single/double) add.s/d, comparison c.eq.s/d, branch bclt/bclf, data transfer lwc1/swc1
      • Floating-point registers: $f0 to $f31, each 32-bit. A double-precision register is actually an even-odd pair of single-precision registers (e.g., double register $f2 = {$f2, $f3})
    • Accurate Arithmetic ls-type:: annotation hl-page:: 267 hl-color:: yellow id:: 6444ac21-f605-497c-b86e-4d36484f6e3a
      • Keep 2 extra bit on the right during ==intermediate additions==, since hardware cannot hold infinite bits for intermediates. They are guard and round.
        • sticky bit: a third bit which indicates whether there are any non-zero bits to the right of the round bit
      • units in the last place (ulp): The number of bits in error in the LSBs (right-most bits) of the significand between the actual number and the rounded number. ==Measure of accuracy==. hl-page:: 268 ls-type:: annotation id:: 6444af4d-4e28-41ab-97b9-a4442cbe9d9a hl-color:: yellow
      • IEEE 754 has 4 rounding modes: always round up (toward +\infin), always round down(toward -\infin), truncate, and round to nearest even. hl-page:: 268 ls-type:: annotation id:: 6444b015-6430-4fce-b780-988a0caa63f5 hl-color:: yellow
  • Parallelism and Computer Arithmetic: Subword Parallelism ls-type:: annotation hl-page:: 271 hl-color:: yellow id:: 6444bd6c-1170-4f97-932b-af66246ff486 collapsed:: true
    • Many multimedia applications use 8-bit or 16-bit data units, thus the processor can perform simultaneous operations on short vectors of these smaller operands (which are stored in a single word-size register)
    • subword parallelism, data level parallelism, SIMD
  • Real Stuff: Streaming SIMD Extensions and Advanced Vector Extensions in x86 ls-type:: annotation hl-page:: 273 hl-color:: yellow id:: 6444bda7-e1ae-495b-86eb-5507878df5d8 collapsed:: true
    • multiple floating-point operands packed into a single 128-bit SSE2 register hl-page:: 273 ls-type:: annotation id:: 6444bfc1-7314-4629-ae26-defc51e37a96 hl-color:: yellow
    • load and store multiple operands per instruction, perform arithmetic operations on multiple operands
  • Going Faster: Subword Parallelism and Matrix Multiply ls-type:: annotation hl-page:: 274 hl-color:: yellow id:: 6444bdac-2bc0-490a-ac86-88c702b83c65 collapsed:: true
    • DGEMM: Double precision GEneral Matrix Multiply. A commonly used program for demonstration. hl-page:: 274 ls-type:: annotation id:: 6444c0b0-7629-423c-b600-03286f22c6bd hl-color:: yellow
    • An interesting example for how to use SIMD to speedup matrix multiply.
      void dgemm(int n, double* A, double* B, double* C) {
  for (int i = 0; i < n; ++i)
  for (int j = 0; j < n; ++j) {
    double cij = C[i+j*n]; /* cij = C[i][j] */
    for( int k = 0; k < n; k++ )
    cij += A[i+k*n] * B[k+j*n]; /* cij += A[i][k]*B[k][j] */
    C[i+j*n] = cij; /* C[i][j] = cij */
  }
}

void dgemm_AVX(int n, double* A, double* B, double* C) {
  for (int i = 0; i < n; i+=4)
  for (int j = 0; j < n; j++) {
    __m256d c0 = _mm256_load_pd(C+i+j*n); /* c0 = C[i][j] */
    for(int k = 0; k < n; k++)
      c0 = _mm256_add_pd(c0, _mm256_mul_pd(_mm256_load_pd(A+i+k*n), _mm256_broadcast_sd(B+k+j*n)));
    /* c0 += A[i][k]*B[k][j] */
    _mm256_store_pd(C+i+j*n, c0); /* C[i][j] = c0 */
  }
}
  • Fallacies and Pitfalls ls-type:: annotation hl-page:: 278 hl-color:: yellow id:: 6444bdb2-6eb9-44b2-afcf-0a844265f162 collapsed:: true
    • Pitfall: ==Floating-point addition is not associative==. ls-type:: annotation hl-page:: 278 hl-color:: yellow id:: 6444c121-8df1-44b0-8077-5258bb7e907d
    • Parallel execution strategies that work for integer data types ==NOT always work for floating-point== data types. hl-page:: 279 ls-type:: annotation id:: 6444c1f0-95bb-4cb4-b82c-b68e52f8b53b hl-color:: yellow
    • Pitfall: The MIPS instruction add immediate unsigned (addiu) ==sign-extends== its 16-bit immediate field. ls-type:: annotation hl-page:: 279 hl-color:: yellow id:: 6444c1c5-55d6-4ee4-a522-7775b374d047
  • Word List 3 collapsed:: true
    • quirk 怪异的性格(或行为)；怪癖 ls-type:: annotation hl-page:: 227 hl-color:: green id:: 64433ef2-0591-499f-b056-b2664d81156e
    • vex 使恼火；使烦恼；使忧虑 hl-page:: 232 ls-type:: annotation id:: 64434f3c-f512-4f58-a6f2-05e7aa355ec6 hl-color:: green
    • vague 不明确的；含糊的；模糊的； ls-type:: annotation hl-page:: 267 hl-color:: green id:: 6444aca4-859a-4303-b126-5b4fb95801ea
    • equitable 公正的,合理的 hl-page:: 268 ls-type:: annotation id:: 6444ae4a-b788-41ca-bf5a-f3e65eae3f37 hl-color:: green
    • quandary 困惑；进退两难；困窘 - delimma hl-page:: 279 ls-type:: annotation id:: 6444c22c-5633-40b1-9a04-dc9ac66b5cbd hl-color:: green
    • glitch 小故障；小差错 hl-page:: 281 ls-type:: annotation id:: 6444c19b-acea-4882-994b-06a1c34e86fb hl-color:: green

  • The Processor

    ls-type:: annotation hl-page:: 291 hl-color:: yellow id:: 6444be95-7530-4e08-bdf8-c05ea9cc5b9d
  • Introduction ls-type:: annotation hl-page:: 293 hl-color:: yellow id:: 6444e82b-27ec-4755-9dd9-e1d543ab66d3 collapsed:: true
    • A Basic MIPS Implementation ls-type:: annotation hl-page:: 293 hl-color:: yellow id:: 6444e833-44e0-4dd0-82f9-cdcdac95dc04
      • A subset of MIPS ISA: Memory-reference (lw sw), Arithmetic (add sub and or slt), and Branch (beq j)
      • Several common steps:
          1. Send the PC to memory and fetch the instruction
          1. Read 1 or 2 registers, using the fields of the instruction
          1. Except j, all instruction classed use the ALU after reading the registers, though for different purposes (arithmetic, address calculation, comparison)
          1. After ALU, the actions required to complete various classes of instructions differ, such as load/store memory, write to register or change PC.
      • FIGURE Abstract view of the MIPS subset's implementation hl-page:: 295 ls-type:: annotation id:: 64477e93-0b18-4efa-83c0-2c8e71b90457 hl-color:: yellow
      • FIGURE Basic implementation with multiplexors/control. hl-page:: 296 ls-type:: annotation id:: 64477f1f-1cb6-4a55-bfad-148b4a3fb467 hl-color:: yellow
        • Multiplexor: One destination may have multiple sources, and thus we need to select from these sources according to the type of the instruction.
        • Control unit: accepts the instruction as input, and generates signals to control other functional units (e.g., ALU, Memory) and the multiplexors.
  • Logic Design Conventions ls-type:: annotation hl-page:: 297 hl-color:: yellow id:: 64477d00-f17e-40fd-8178-6e21175025a0 collapsed:: true
    • Combinational elements and State elements collapsed:: true
      • For combinational, outputs depend only on the current inputs hl-page:: 297 ls-type:: annotation id:: 6447833a-b83a-40a0-98fa-59b6fa78c15c hl-color:: yellow
      • State elements completely characterize the computer, which has (at least) 2 inputs and 1 output. The clock is used to determine when to write, and a state element can be read at any time. hl-page:: 297 ls-type:: annotation id:: 644a2196-f210-49e3-bf47-5439713057aa hl-color:: yellow
    • Clocking Methodology hl-page:: 298 ls-type:: annotation id:: 644a2259-9a11-4a2d-bbb8-bc71ef75b9ab hl-color:: yellow collapsed:: true
      • Edge-triggered clocking: state elements are only updated on a clock edge.
      • Combinational logic must have its inputs come from a set of state elements and its outputs written into a set of state elements. These inputs are values written in a previous cycle, while the outputs are values that can be used in a following clock cycle. hl-page:: 298 ls-type:: annotation id:: 644a24c1-45e7-4763-8284-25b7d875d2b6 hl-color:: yellow
  • Building a Datapath ls-type:: annotation hl-page:: 300 hl-color:: yellow id:: 644a22b7-e481-4b81-b97d-717955fa09f6 collapsed:: true
    • Program Counter and Instruction Memory
      • PC register, Adder, Instruction memory's address input and data output
      • FIGURE 4.6 ls-type:: annotation hl-page:: 302 hl-color:: yellow id:: 644a5b33-a765-4cfb-a990-55668110f7cc
    • R-Format
      • register file: Each register can be read/written by specifying the register number hl-page:: 301 ls-type:: annotation id:: 644a5b95-b5ad-4568-b41c-783f59940a6c hl-color:: yellow
        • We need to read 2 registers and write 1 register, and this gives an intuition about the interface of the register file: 2 read address, 2 read output, and 1 write address, 1 write data, and an additional control signal RegWrite controlling whether to write.
        • Write to register file is edge-triggered and with an explicit signal, while reads are combinational
      • ALU: 2 32-bit inputs and a 32-bit result (as well as a 1-bit signal for zero flag). Additionally, there is a control signal ALU Operation hl-page:: 301 ls-type:: annotation id:: 644a5d36-fabb-4719-831d-fbcfe797b925 hl-color:: yellow
      • FIGURE 4.7 ls-type:: annotation hl-page:: 302 hl-color:: yellow id:: 644a603d-78ee-4284-ab39-8ae5dfb19818
    • Memory Reference hl-page:: 303 ls-type:: annotation id:: 644a610a-9f03-4213-a7f0-87a0d519909b hl-color:: yellow
      • Need register file and ALU to compute the target address
      • Sign-Extend Unit: sign-extend the 16-bit immediate field in the instruction hl-page:: 303 ls-type:: annotation id:: 644a6150-f971-4fb1-a2be-e2fd0d068e1c hl-color:: yellow
      • Data Memory: Despite the read address and read output, since it is writable, write address, write data and write control are needed as well.
      • FIGURE 4.8 ls-type:: annotation hl-page:: 304 hl-color:: yellow id:: 644a6212-7e80-4d72-9242-2e719b8a43d8
    • Branch hl-page:: 303 ls-type:: annotation id:: 644a627d-01be-4bb7-b84d-c7b66c1a48a0 hl-color:: yellow
      • Comparison between 2 operand registers: re-use the ALU
        • branch taken and not taken: Replace PC with, branch target address or incremented PC
      • Compute branch target address: Sign-Extension and Adder hl-page:: 303 ls-type:: annotation id:: 644a6329-781d-4c60-b194-ac5aafba89f6 hl-color:: yellow
        • Sign-extend the constant(offset) field of the instruction
        • The relative base of this computation is PC + 4
        • The offset field needs to be left-shifted by 2
      • FIGURE 4.9 ls-type:: annotation hl-page:: 305 hl-color:: yellow id:: 644a64b3-3c73-48cb-b5b6-428a3cf7e961
    • Creating a Single Datapath hl-page:: 305 ls-type:: annotation id:: 644a62f9-c49b-4e03-9ef3-deafe6f9f37d hl-color:: yellow
      • execute all instructions in a Single clock cycle, so no datapath resource can be used more than once per instruction hl-page:: 305 ls-type:: annotation id:: 644a6592-a327-499f-81ae-1b4a6e7be71a hl-color:: yellow
      • To ==share a datapath element== between two different instruction classes, we may need to allow multiple connections to the input of an element, using a ==multiplexor and control signal== to select among the multiple inputs. hl-page:: 305 ls-type:: annotation id:: 644a6f81-bceb-4923-afcb-437fcbc26b91 hl-color:: yellow
        • Share an ALU for Memory-Reference and Arithmetic instructions
        • Share the write-back path between lw and Arithmetic
        • Share sign-extend unit between Branch and Memory
        • A separate Add unit to calculate branch target
    • FIGURE 4.11 The simple datapath for the core MIPS architecture combines the elements required by different instruction classes. ls-type:: annotation hl-page:: 307 hl-color:: yellow id:: 644a6fb3-921e-4395-b132-f4be1a542268
  • A Simple Implementation Scheme ls-type:: annotation hl-page:: 308 hl-color:: yellow id:: 644a6306-3290-4abd-b506-7234340a9977 collapsed:: true
    • With the datapath construction above, we add a control function to complete the implementation.
    • The ALU Control ls-type:: annotation hl-page:: 308 hl-color:: yellow id:: 644a7005-84e0-47ae-8f10-0bc02cd041f3
      • multiple levels of decoding hl-page:: 309 ls-type:: annotation id:: 644a72c6-9a8f-407f-95df-031a6598d422 hl-color:: yellow
        • Main Control generates ALUOp which indicates the instruction class (Memory, Branch, Arithmetic). And the ALUOp together with funct field generate the actual signals to control ALU
        • This technique leads to smaller control unit, which is potentially faster
      • A truth table that maps Instructions to the ALU control input
    • Designing the Main Control Unit ls-type:: annotation hl-page:: 310 hl-color:: yellow id:: 644a71a0-c19d-40aa-bef1-eefdb8b311df
      • The input of this "function" is the 6-bit OP field of Instruction, and the outputs are the control signals, except for ALUOp(explained above) and PCSrc
      • The PCSrc signal selects the next PC, which cannot be decided from the Instruction only. Comparison result of the 2 operands is needed in combination with the OP field to control the multiplexor connected with PC.
    • Why a Single-Cycle Implementation Is Not Used Today ls-type:: annotation hl-page:: 320 hl-color:: yellow id:: 644a7930-5ef2-44e8-a468-9315b8cad591
      • We must assume that the clock cycle is equal to the ==worst-case delay== for all instructions, which violates the principle of ==making the common case fast==. hl-page:: 321 ls-type:: annotation id:: 644a795f-d067-4a11-ba2d-8e37d43e9b1d hl-color:: yellow
  • An Overview of Pipelining ls-type:: annotation hl-page:: 321 hl-color:: yellow id:: 644a7223-c882-446f-adf5-3b819386c6c2 collapsed:: true
    • Speedup from pipelining
      • Under ideal conditions (e.g., the stages are perfectly balanced) and with a large number of instructions, the speed-up from pipelining is approximately equal to the ==number of pipe stages== hl-page:: 324 ls-type:: annotation id:: 644a7f5b-f357-4235-b3cf-034877a5946d hl-color:: yellow
      • Pipelining improves performance by ==increasing instruction throughput==, as opposed to decreasing the execution time of an individual instruction, but instruction throughput is the important metric because ==real programs execute billions of instructions==. hl-page:: 326 ls-type:: annotation id:: 644a817b-8d05-418d-829b-8952b2fa2f5c hl-color:: yellow
    • Designing Instruction Sets for Pipelining ls-type:: annotation hl-page:: 326 hl-color:: yellow id:: 644a8196-0384-44b9-b141-c2e78451cb7e
      • Aligned instructions; Regular instruction formats; Restricted memory operands (only load/store); Aligned operands (data address)
    • Pipeline Hazards ls-type:: annotation hl-page:: 326 hl-color:: yellow id:: 644a80a5-e321-4d67-a16a-98fd02db800c
      • hazards: There are situations in pipelining when the ==next instruction cannot execute in the following clock cycle==. hl-page:: 326 ls-type:: annotation id:: 644a85c9-d4a3-40e1-abca-0bf71ae67004 hl-color:: yellow
      • Structural Hazard hl-page:: 326 ls-type:: annotation id:: 644a8737-93a8-474b-8029-1eff257568e0 hl-color:: yellow
        • Hardware cannot support the combination of instructions (that we want to execute in the same clock cycle) hl-page:: 326 ls-type:: annotation id:: 644a8932-4413-4859-866c-c008e57947bd hl-color:: yellow
        • Example: Assume that we do not have separate instruction and data memory, then a lw will monopolize the memory bus and thus prevent an instruction fetch in the same cycle (resulting in a bubble in the Fetch stage).
      • Data Hazards ls-type:: annotation hl-page:: 327 hl-color:: yellow id:: 644a8a16-8e43-4d26-a968-8af915459447
        • The pipeline must be stalled because one step must wait for another to complete. More specifically, the dependence of one instruction on an earlier one that is still in the pipeline. hl-page:: 327 ls-type:: annotation id:: 644a8a51-e14d-4e22-91d9-6f4382e713c2 hl-color:: yellow
        • Example:
          add $s0, $t0, $t1
sub $s1, $s0, $t3
; The add is in EX, and sub is in ID.
; The result of add isn't yet written back to reg file($s0),
;   while sub needs that result
        • Solution: forwarding(bypassing). Directly feed the missing result to the next instruction rather than wait for the result being written back to reg file. hl-page:: 327 ls-type:: annotation id:: 644a8c19-dd9f-4025-9fc7-f7e6881f1ae6 hl-color:: yellow collapsed:: true
          • Forwarding cannot solve all data hazards, e.g., in a load-use case, the following instruction has to wait for data being fetched from memory.
          • pipeline stall ls-type:: annotation hl-page:: 329 hl-color:: yellow id:: 644a8e47-9fcf-4944-8036-1c831ec18918
        • Another solution: re-ordering the instructions.
    • Control(Branch) Hazards hl-page:: 330 ls-type:: annotation id:: 644a8dc0-abb5-4c17-bece-30484d124bc7 hl-color:: yellow
      • Make a decision based on the results of one instruction while others are executing. hl-page:: 330 ls-type:: annotation id:: 644a8f6f-732d-41f9-ab03-66062a7b157b hl-color:: yellow
        • The branch class instruction. The pipeline cannot know what the next instruction should be until the branch is resolved.
        • In the case of classical MIPS 5-stage pipeline, branch leads to an 1-cycle stall (C0: Fetch branch; C1: Decode branch, and the ALU combinational circuit already resolved the branch; C2: Fetch new instruction according to the result of ALU, and this result is written to EX stage Flip-Flop).
      • Solution: prediction hl-page:: 332 ls-type:: annotation id:: 644a92cc-7301-491e-961a-64310ef0252b hl-color:: yellow
        • The simplest policy is to predict that each branch is not taken or taken.
        • Dynamic hardware predictors make guesses depending on the behavior of each branch. For example, keep a history for each branch and use the recent past behavior to predict.
        • When failed, the pipeline needs to neutralize the following instruction and restart the pipeline.
      • Another solution: delayed decision hl-page:: 333 ls-type:: annotation id:: 644a9505-08fd-47ae-b202-3f2f2534dd90 hl-color:: yellow
        • Place an instruction not affected by the branch immediately after the branch instruction, and always executes it.
  • Pipelined Datapath and Control ls-type:: annotation hl-page:: 335 hl-color:: yellow id:: 644a8636-5eb3-45d2-ab01-a0acd29747b0
    • Five stages: IF, ID, EX, MEM, WB
  • Word List 4 collapsed:: true
    • anatomy 解剖学 ls-type:: annotation hl-page:: 321 hl-color:: green id:: 644a7236-aa52-48a8-8f9a-faa5ca23fa99
    • filthy 肮脏的；淫秽的 hl-page:: 330 ls-type:: annotation id:: 644a8f8f-6a6e-400a-bc18-c48d24b3ab6e hl-color:: green
    • stark 荒凉的（啥也没有）；残酷的（残酷的现实）； hl-page:: 333 ls-type:: annotation id:: 644a935b-84fe-4103-8915-a1df599e9915 hl-color:: green
    • nonetheless 虽说如此 hl-page:: 334 ls-type:: annotation id:: 644a95de-ca6f-4036-b50a-629008ebd1ad hl-color:: green
